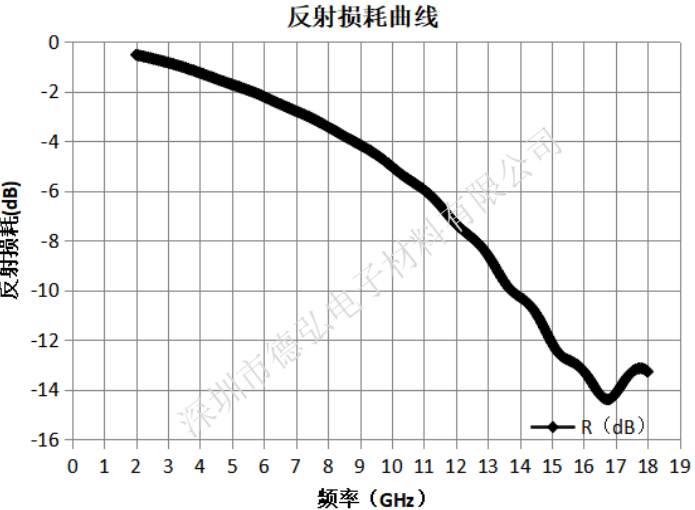

产品特性曲线 Product characteristic curve
性能参数 Product properties
|
项目 Item |
D-T6000X |
单位 Unit |
公差 Tolerance |
测试标准 Test Method |
|
参数parameter |
||||
|
颜色Color |
灰色 Gray |
- |
- |
-- |
|
厚度Thickness |
0.5-5.0 |
mm |
- |
ASTM D374 |
|
导热系数Thermal Conductivity |
6.0 |
W/m.k |
±0.5 |
ASTM D5470 |
|
使用温度Temperature Range |
-40～120 |
℃ |
- |
EN344 |
|
硬度Hardness |
30-55 |
Shore C |
±5 |
ASTM D2240 |
|
密度density |
5 |
g/cm3 |
±0.5 |
ASTM D792 |
|
介电常数Dielectric constant |
≥5.0 |
@1MHz |
- |
ASTM D150 |
|
击穿电压Breakdown Voltage |
≥0.1 |
KV/mm |
- |
ASTM D149 |
|
拉伸强度Tensile Strength |
≥0.05 |
MPa |
- |
ASTM D412 |
|
压缩比RatioCompression Ratio |
≥15（@50psi） |
% |
- |
ASTM D 695 |
|
体积电阻率Volume Resistivity |
≥1.0*106 |
Ω•cm |
- |
ASTM D257 |
